Installing iCE Studio
In this section, you’ll install iCE Studio and set up the FPGA toolchain required to program your Soan Papdi board.
By the end, you’ll have everything ready to build and upload your first FPGA design.
What You’ll Need
Before getting started, make sure you have the following:
- Computer — Windows, macOS, or Linux.
- Internet connection — required to download iCE Studio and the toolchain.
- Python 3.12 or later — required by the toolchain.
Once you have everything ready, you’re all set to install iCE Studio and build your first FPGA project.
Download iCE Studio
Download the iCE Studio for your operating system:
Opening iCE Studio

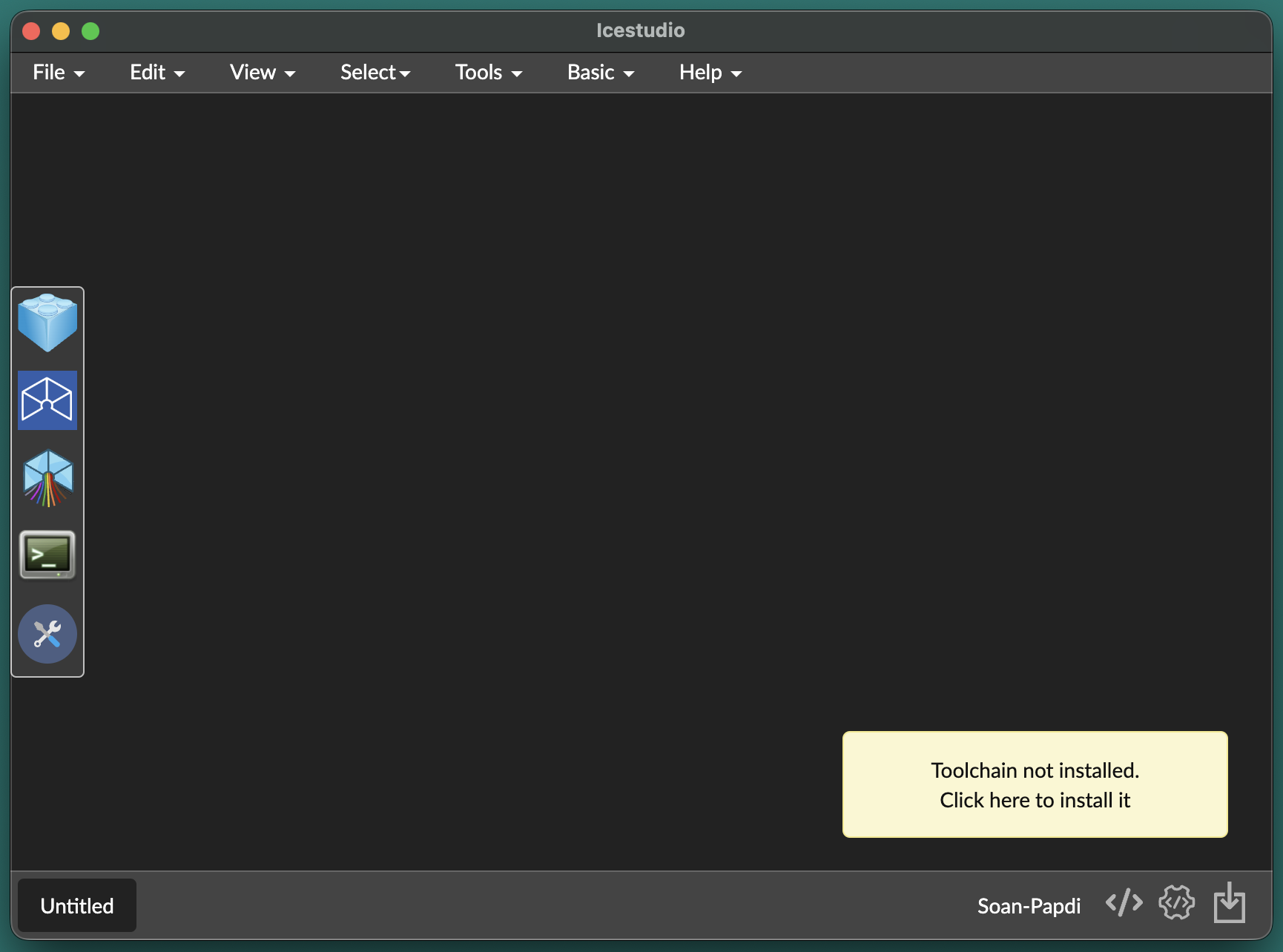

Install iCE Studio just like any other desktop application. When you launch it for the first time, you’ll see the following screen:
You’ll notice a popup in the bottom right saying:"Toolchain not installed. Click here to install it" — perfect timing, because that’s exactly what we’re doing next!
Installing the Toolchain (Apio)
Before you can build and upload circuits to Soan Papdi, you need to install the FPGA toolchain. Think of it as the engine that powers iCEStudio.

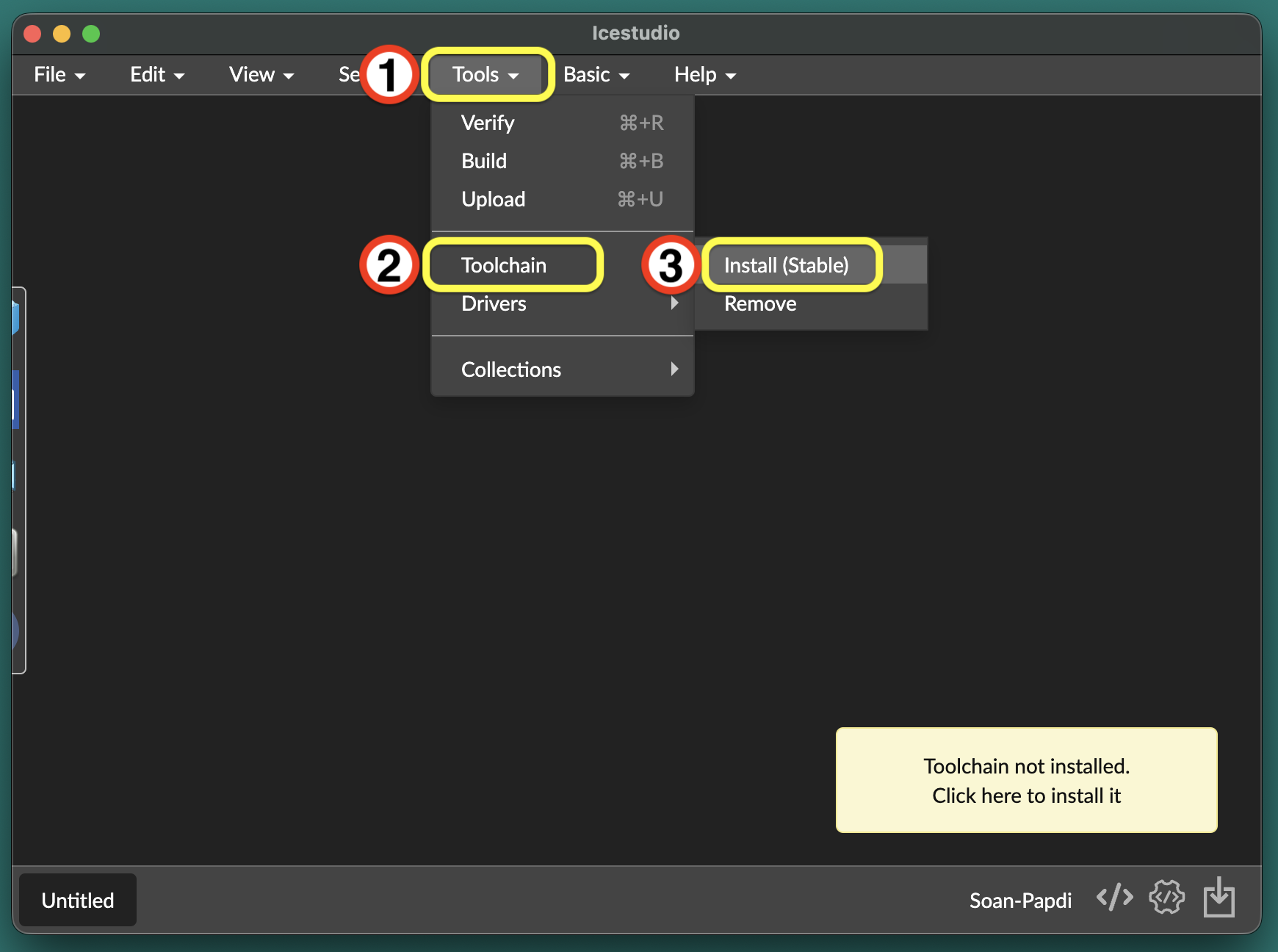

In iCEStudio, go to Tools → Toolchain → Install (Stable).

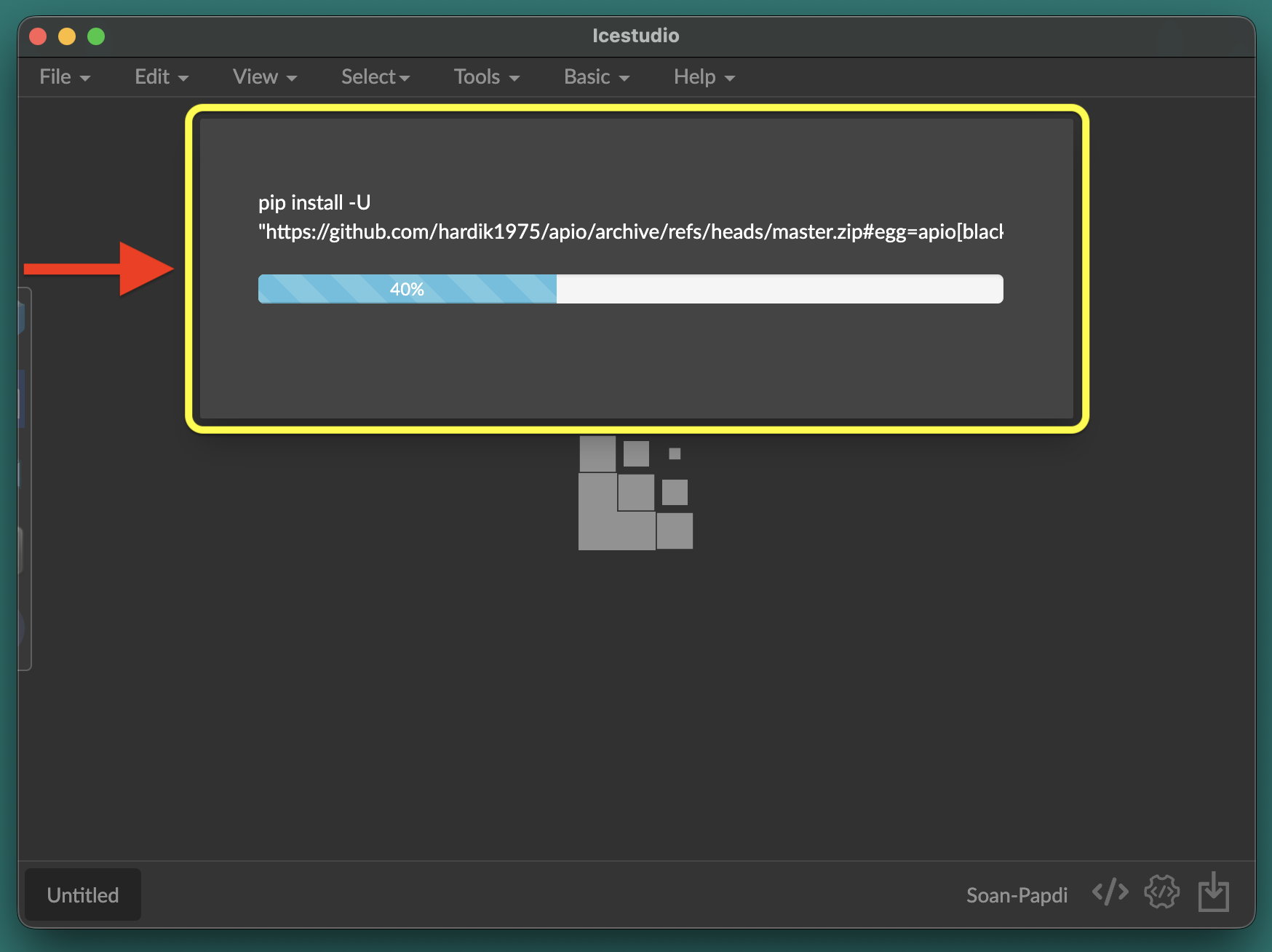

The toolchain will begin downloading.

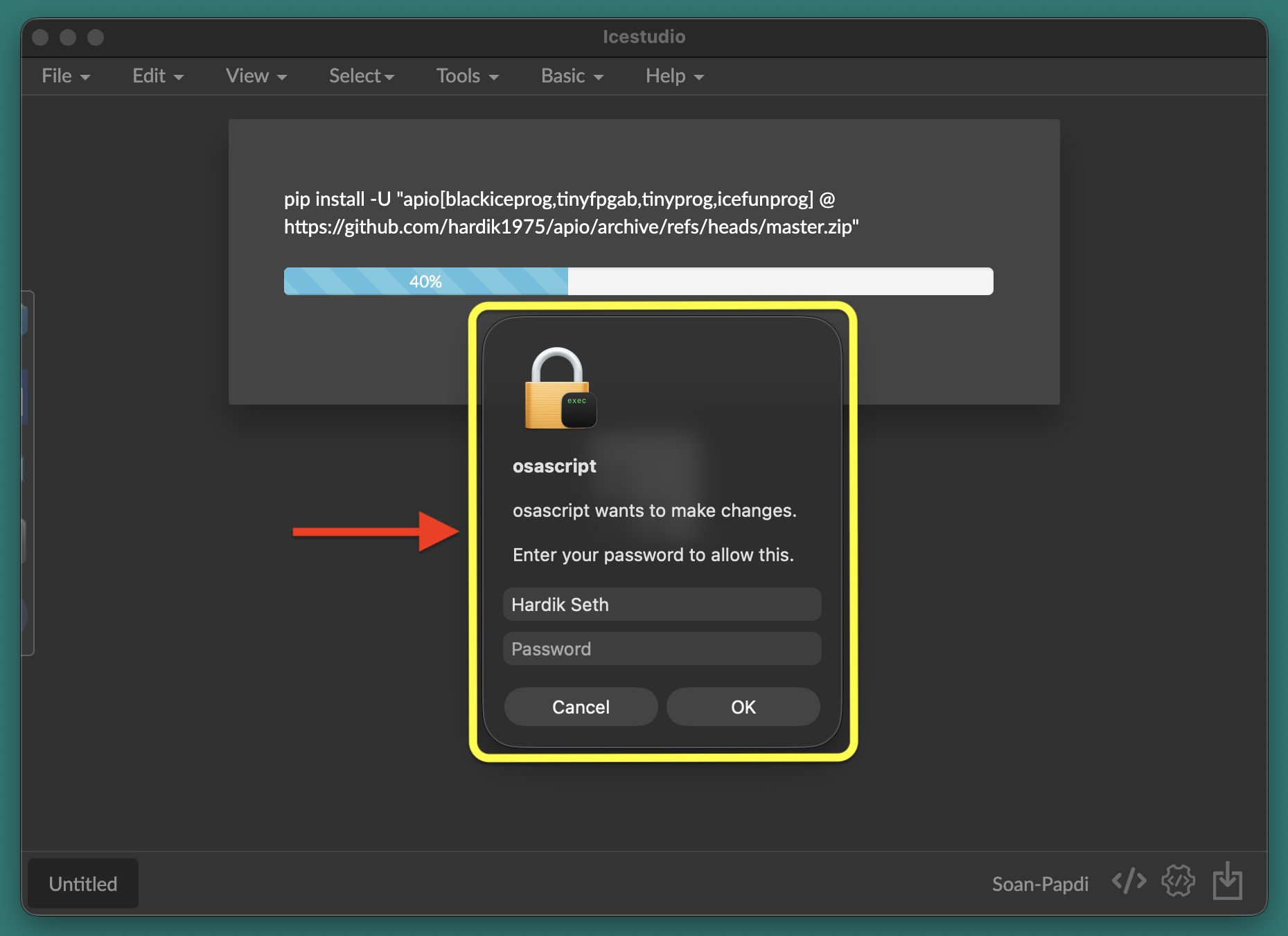

During installation, you may be asked to enter your system password. This allows iCE Studio to install the required dependencies.
Verify the Toolchain Installation
After the installation finishes, verify that everything was installed correctly.

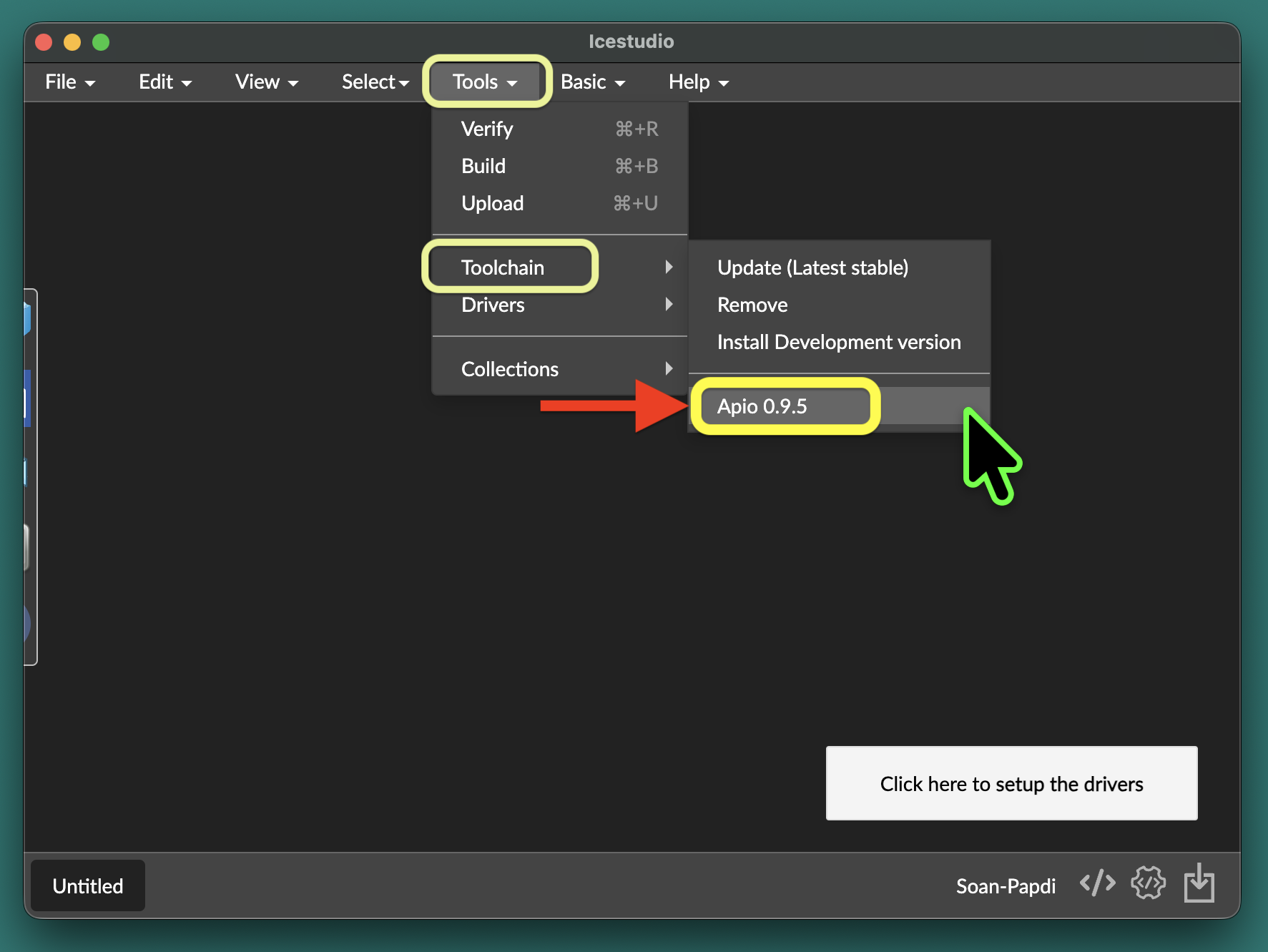

Open Tools → Toolchain and confirm that Apio 0.9.5 is listed.
You’re all set! 🎉
iCE Studio and the FPGA toolchain are now installed.
